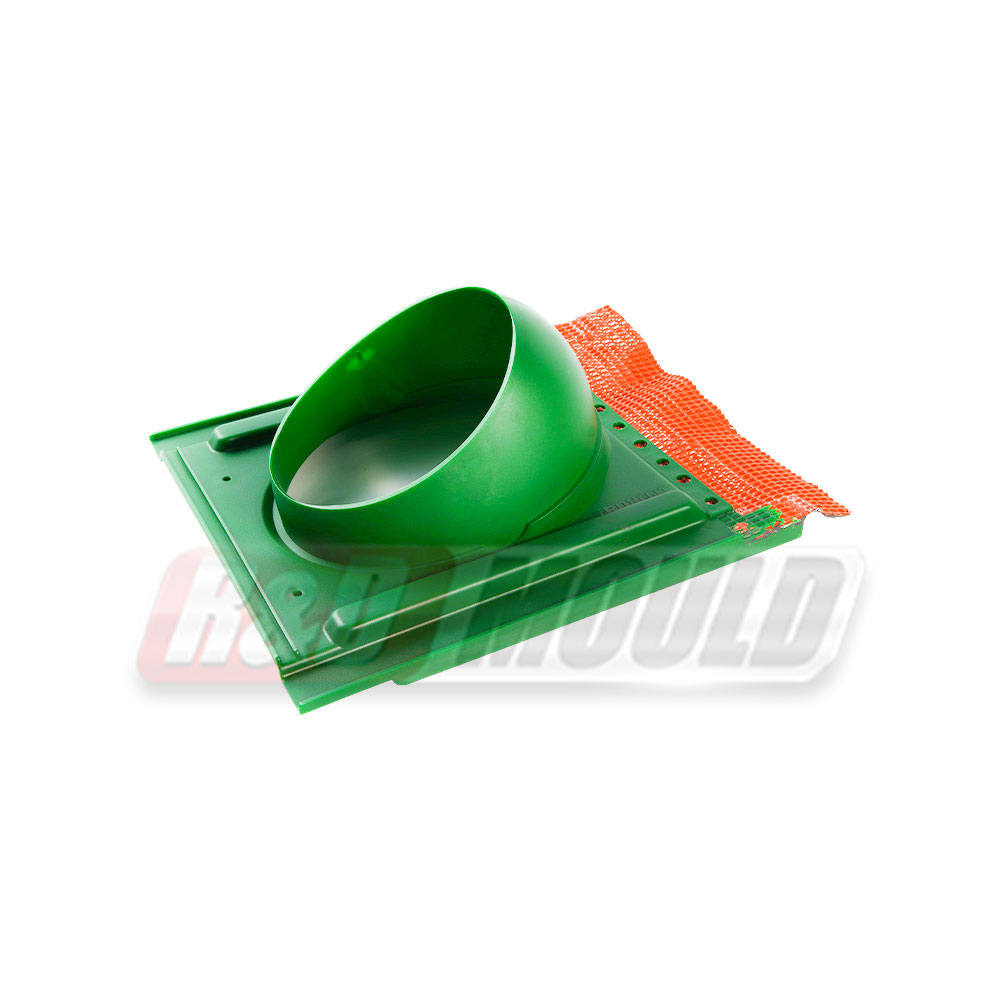

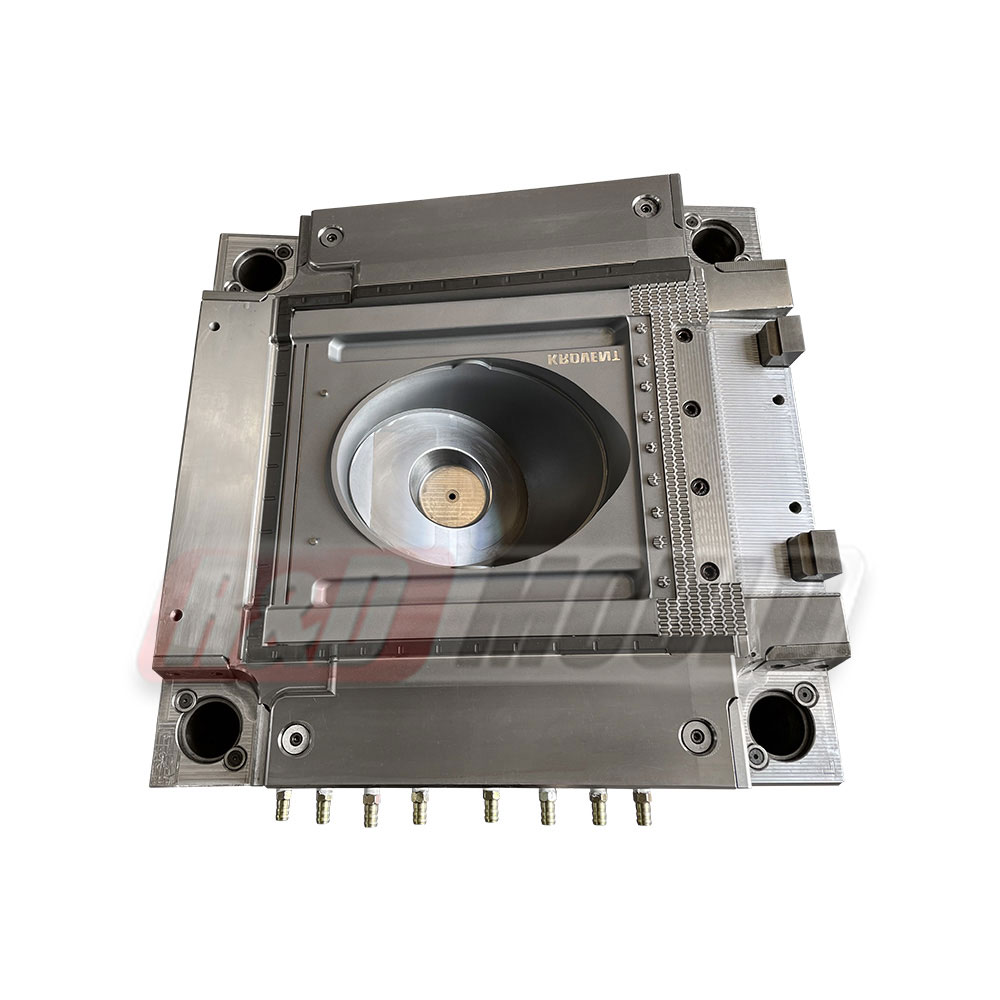

Base Universal Mould

Mold Name Base Universal Mould
Plastic Material PP
Mold Cavity/Core Steel 718H
Runner /Gate System Cold Runner
Manufacture Time (Day) 50 Days
Mold Life 500,000 Shots
Machine Size 320 Ton
Demolding Full Automatic
Contact Us
  • Description
  • Feedback
  • Base Universal Mould
    R&D Mould has more than 15 years’ experience for making industrial moulds. We provide you excellent design and manufature with competitive price.We also provide perfect after-sales service so that you have no worries.
    Welcome to contact us for any industial mould enquiry !
    Advantage
    1.Complete processing equipment
    2.Experienced mould designer and engineers
    3.Hign strength of the mould
    4.Best cooling
    5.Excellent polishing
    6.Excellent after-sale service
    7.Effective communication
    8.Promot delivery
    9.Competitive mould price
    Mould Packaging Details
    1.Outside package: standard export wooden case;
    2. Inner package: we spread anti-corrosive oil on the surface of the mould and then cover with plastic waterproof film.
    3. Spare parts together with the mould shipment.

Base Universal Mould Maker, Foundry in China

  • CNC machining:

    After receiving UP from the programmer, the CNC operator performs the following operations:
    - Select suitable UP steel, as well as copper or graphite (electrode) billets for molding parts in the warehouse;
    - Set the workpiece on the NC table, display "0" and input the original data;
    - Load the required program into the machine and check all future details:
    Mould number, part number or copper electrode number (per part)
  • Electric pulse machining:

    The electrodes are sent from the inspection site to the polishing section, and then to the electric pulse processing section.
    The operator mounts the workpiece on an electric pulse machine,
    Set "0" and enter processing and setup procedures as needed
    Requirements: Avoid carbon deposition during electric pulse machining
    Fluid flow must be controlled. If necessary, during the process to check parts dimensions by using measuring tools or probes.
  • EDM:

    Machining various types of base, inserts, gaps, holes, forming tools in the EDM area. All these operations are carried out in accordance with the technical requirements of the drawings and continuous quality control.
  • Mould finishing and assembly:

    In the finishing assembly site, mold manufacturing process is completed. The mould worker carries on the fine processing and assembling for the mould forming parts, and prepares the mould for test. The qualifications of mould workers determine the quality of mould manufacturing and are mainly responsible for the reputation of the company. After all the processing, the production of the injection mould can be considered completed. Base Universal Injection Mould making is a high-tech processing. OEM/ODM optional.
